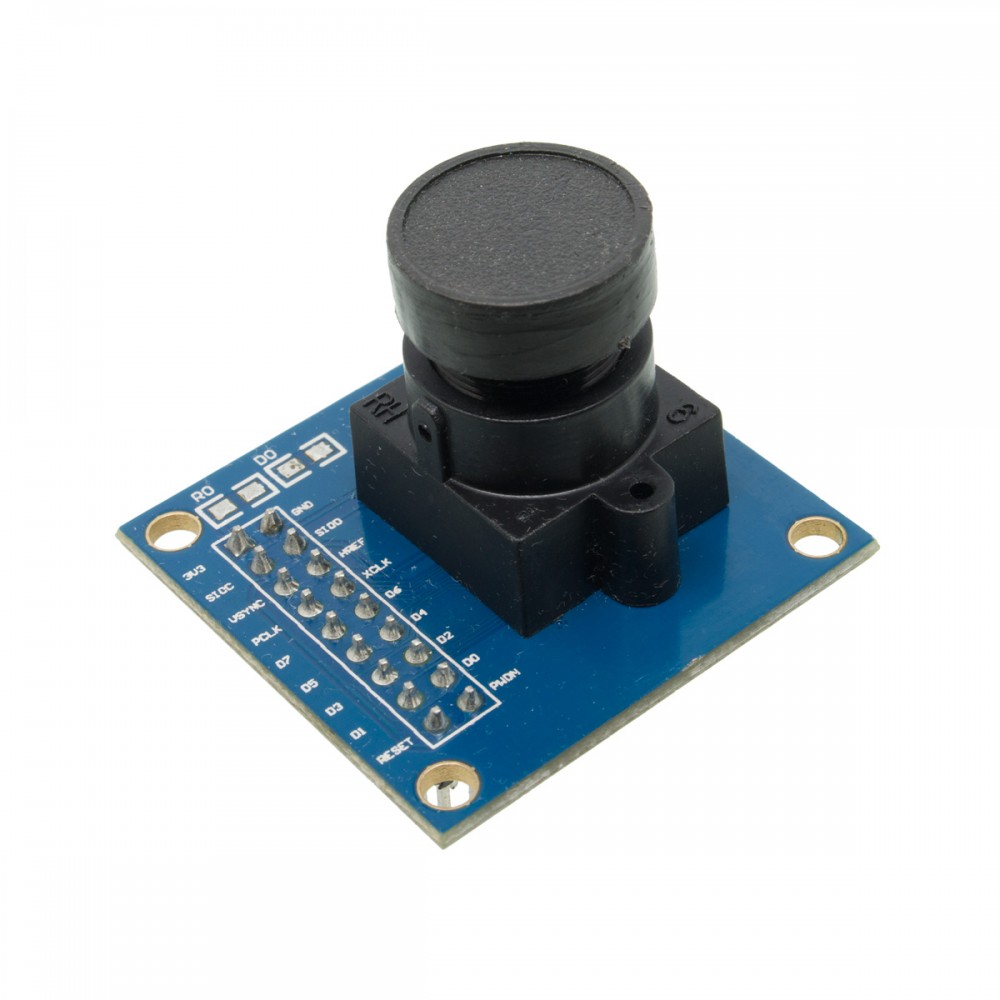

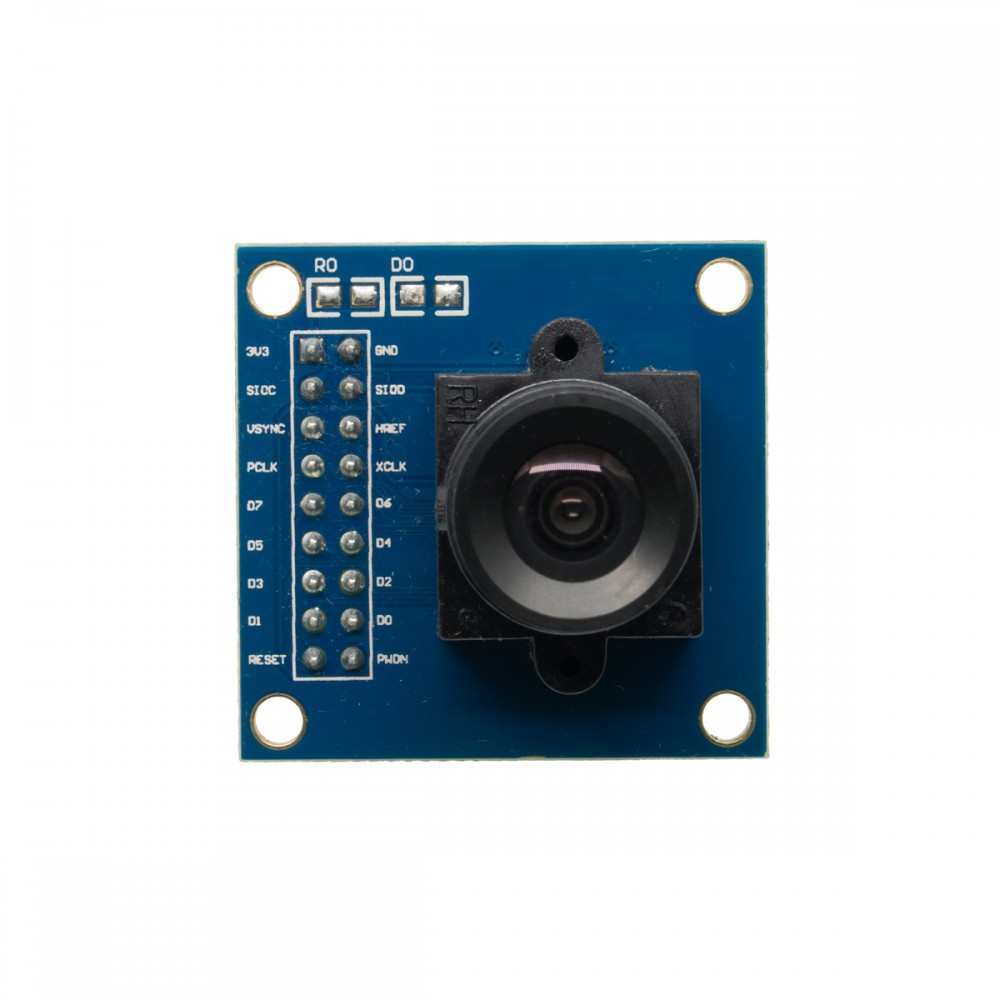

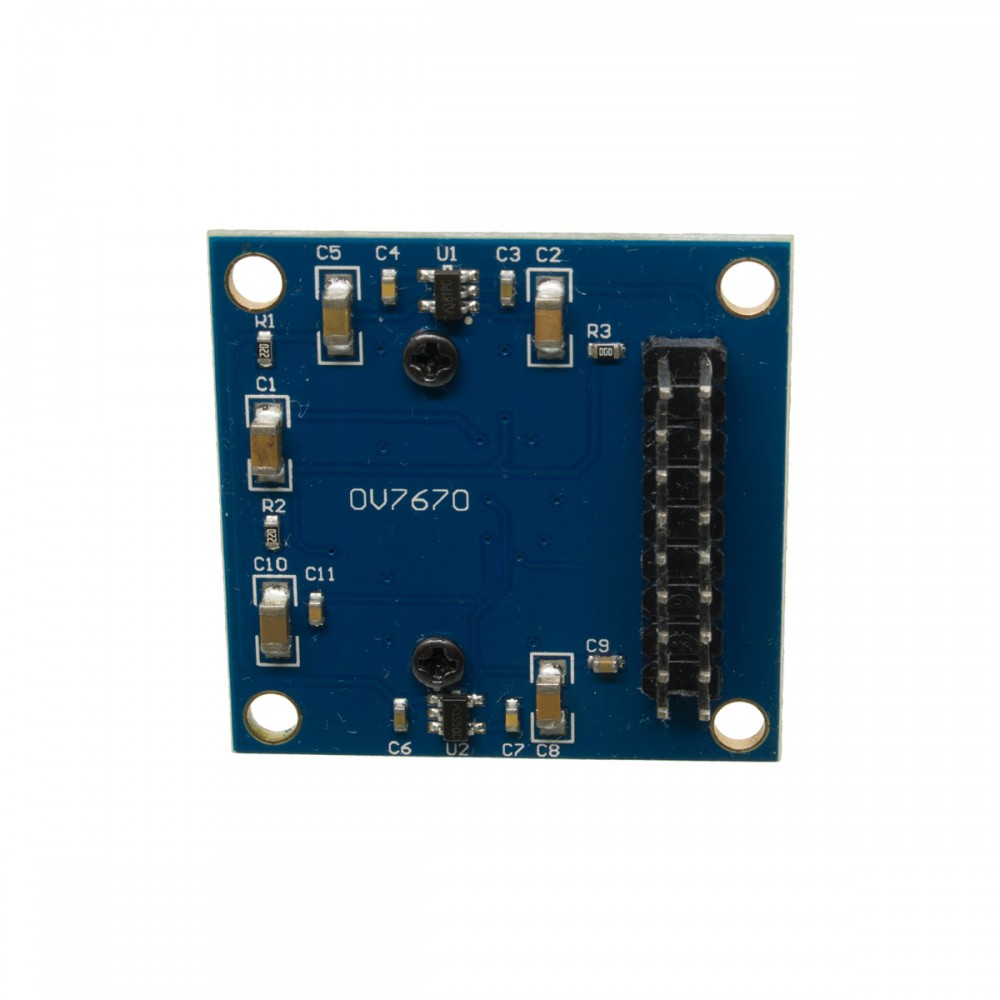

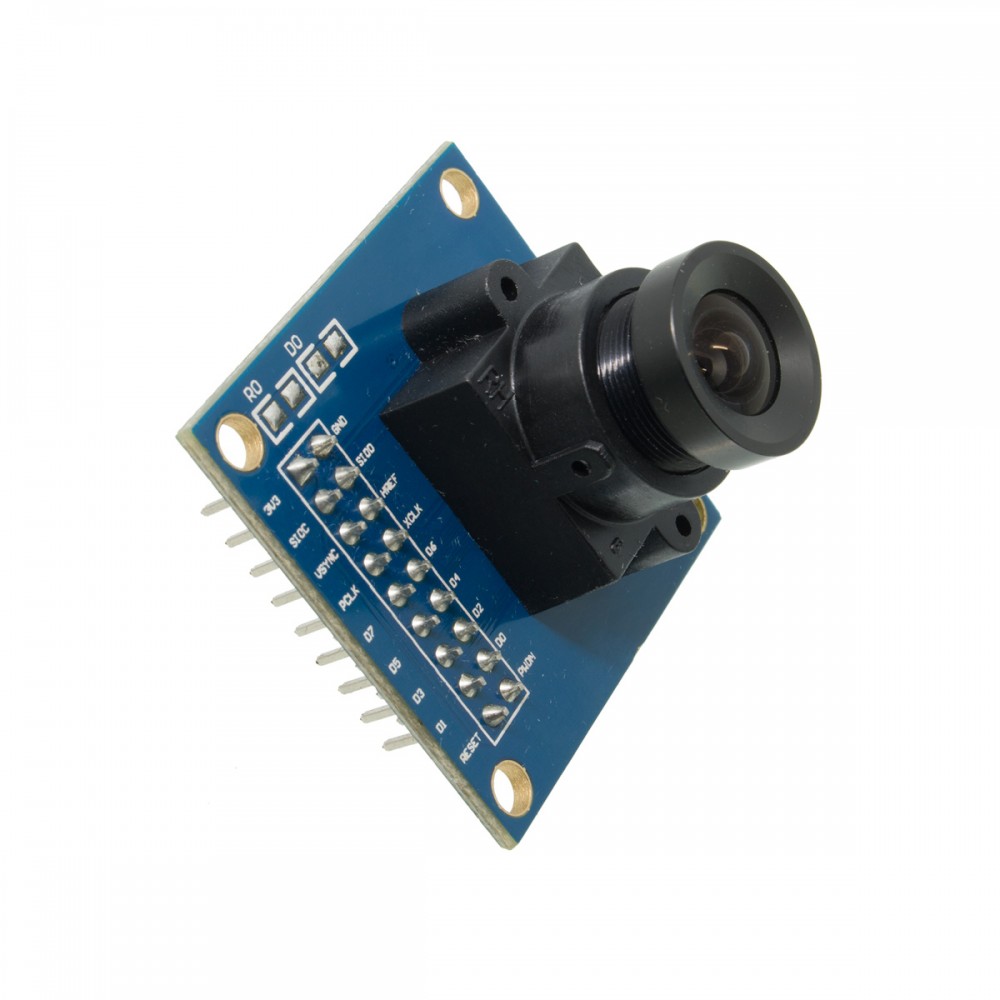

Camara OV7670 Sensor de Imagen CMOS 640x480 pixeles

Camara OV7670 Sensor de Imagen CMOS 640x480 pixeles

NO.：ECS000232
Quantity： 350 PCS
Weight：0gram
Goods click count：420
Market price： $0 / 1pcs
Shop price：$0 / 1pcs
Rank：
Total：
Quantity：
Limit points for buying：0 integral

Goods Brief：

Attribute

Camara OV7670 Sensor de Imagen CMOS 640x480 pixeles

Caracteristicas:

Voltaje de Operacion 3.3V DC

Consumo de energia 60mW/15fpsVGAYUV

Corriente Sleep <20uA

Camara OV7670

Transmision de datos en paralelo (8 bits)

Lente optico 1/6”

Angluo de vision (FOV) 25º

Resolucion 640x480 VGA

Sensibilidad 1.3V / (Lux-sec)

Ratio Senal-Ruido (SNR) 46 dB

Rango Dinamico 52 dB

Modo de vista Progresivo

Lente de alta calidad F1.8/6mm

Maximo refresco de cuadro 30 fps VGA

Exposicion electronica 1 a 510 filas

Cobertura de pixel 3.6um x 3.6um

Formatos de Salida Raw RGB (8 digit), RGB (GRB 4:2:2, RGB 565/555/444), YUV (4:2:2) y YCbCr (4:2:2)
