Celda de Carga de 200Kg

NO.：ECS000236
Quantity： 8500 PCS
Weight：0gram
Goods click count：392
Market price： $0 / 1pcs
Shop price：$0 / 1pcs
Rank：
Total：
Quantity：
Limit points for buying：0 integral

Goods Brief：

Attribute

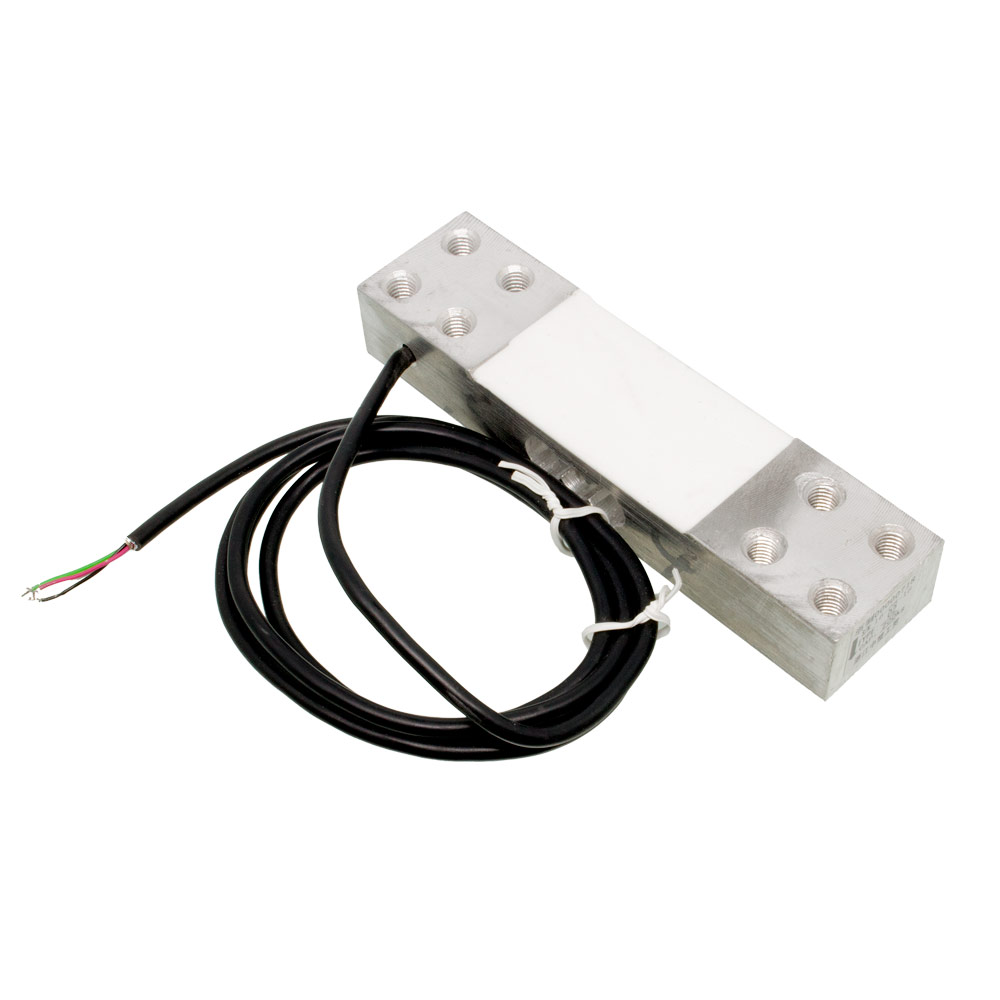

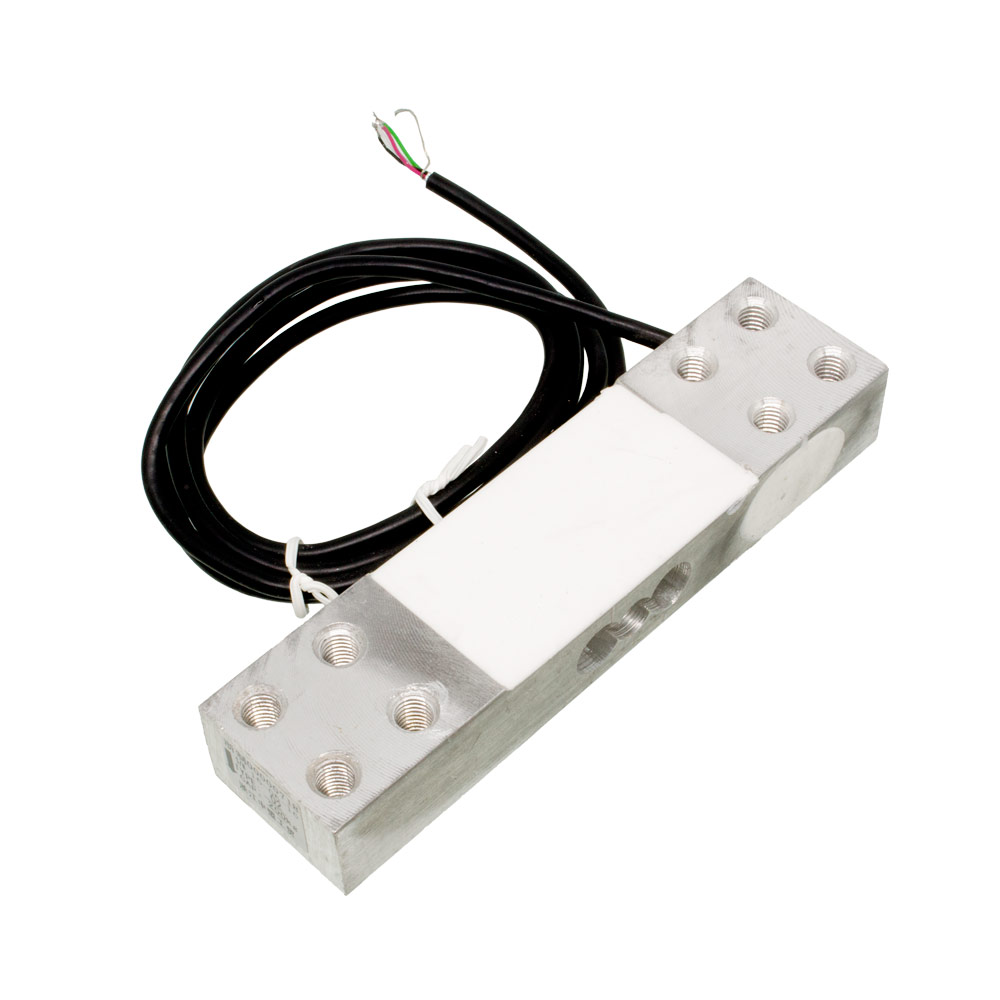

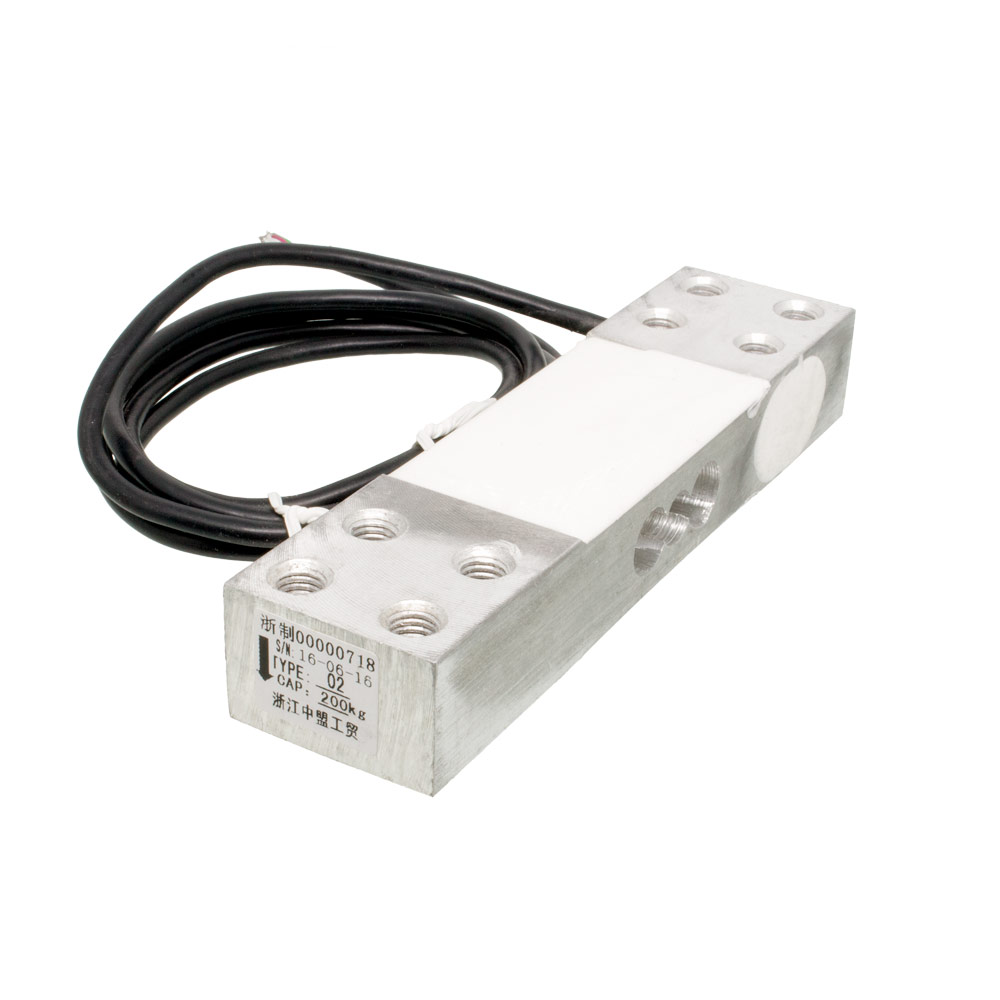

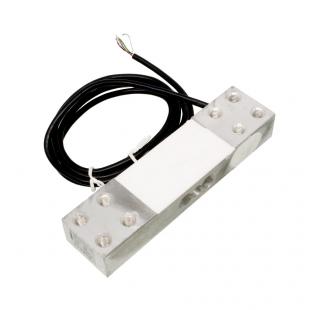

Celda de Carga de 200Kg.

Galga de tension de resistencia (elemento de conversion) pelicula sometida a deformacion por tension o compresion.

Caracteristicas Tecnicas:

Sensibilidad: 2.0±2.0mv / v.
Impedancia de entrada: 402±6.
Impedancia de salida: 350±3.
Resistencia de aislamiento: 5000M (100VDC).
Tension de excitacion: 5VDC ~ 12VDC.
Rango de compensacion de temperatura: 10 ~ +40.
Rango de temperatura de funcionamiento: -35 ~ +80.
Dimensiones: 150mm (Largo) x 38mm (Ancho) x 24mm (Espesor)
